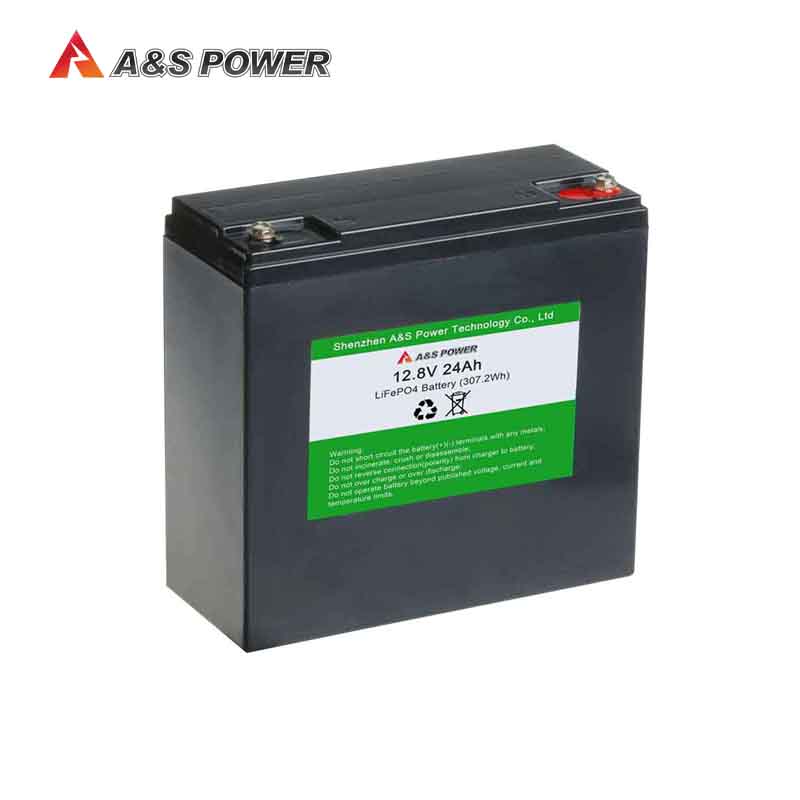

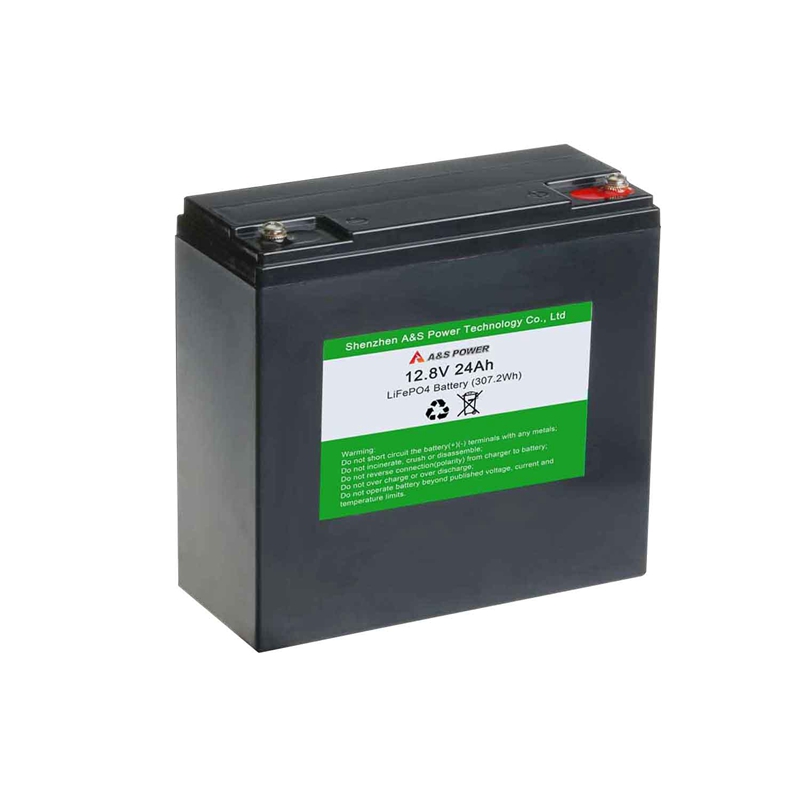

| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 24Ah @ 0.2C | |
| Energy | 307.2Wh | |
| Internal Resistance | ≤60mΩ | |
| Cycle Life | >2000 cycles @ 0.2C charge/discharge at 100% DOD (End of life: 70% capacity) | |
| Self Discharge | ≤3.5% per month at 25°C | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode (CC/CV) | At 0°C ~ 45°C, charged to 14.6V at constant current of 0.2C5A, then charged with constant voltage of 14.6V until current is not more than 0.02C5A. | |
| Charge Current | 4.8A | |
| Max. Charge Current | 12A | |
| Standard Discharge | Discharge Current | 4.8A |
| Max. Continuous Current | 24A | |
| Max. Pulse Current | 60A (<3S) | |
| Discharge Cut-off Voltage | 10.0V | |
| Environmental | Charge Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C | |
| Storage Temperature | 0°C to 45°C | |
| Water Dust Resistance | IP55 | |
| Mechanical | Cell & Method | IFR32700 N60, 4S4P |
| Plastic Case | ABS | |
| Dimension (L*W*H*TH) | 181*77*167*167mm | |
| Weight | Approx. 2.9KG | |
| Terminal | M5 |
