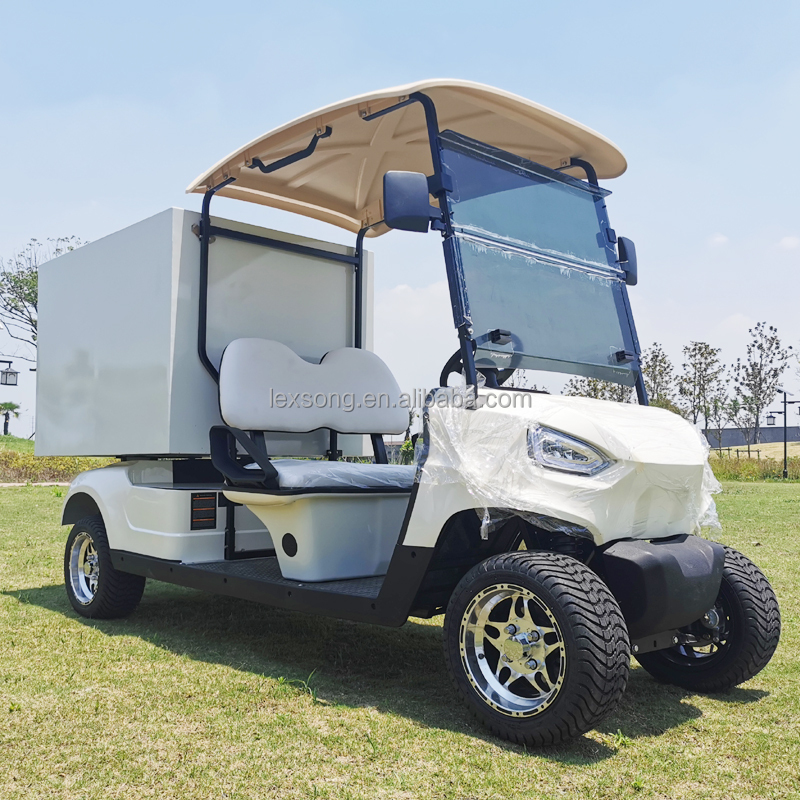

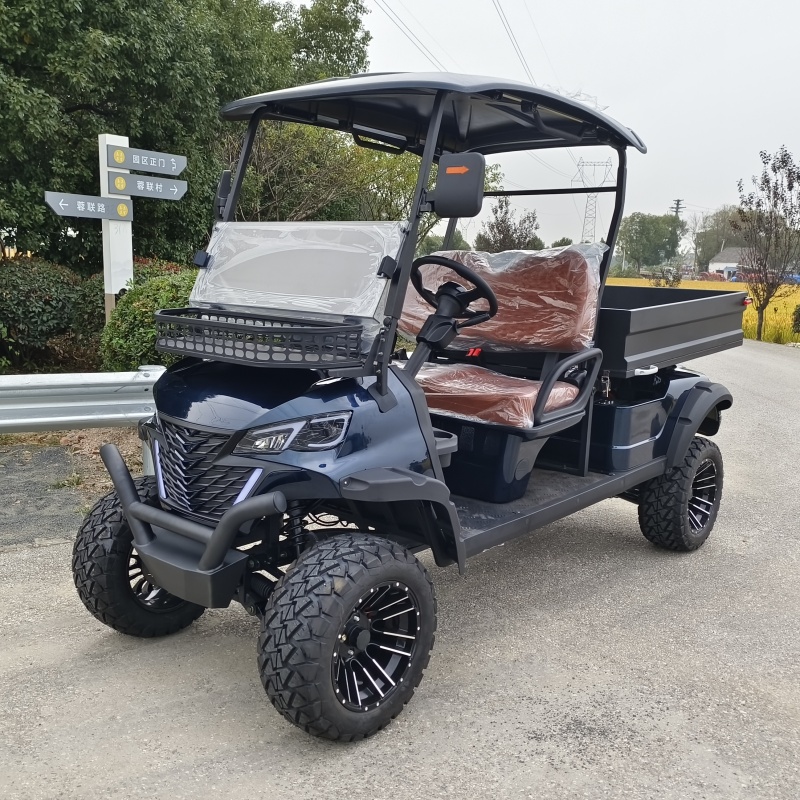

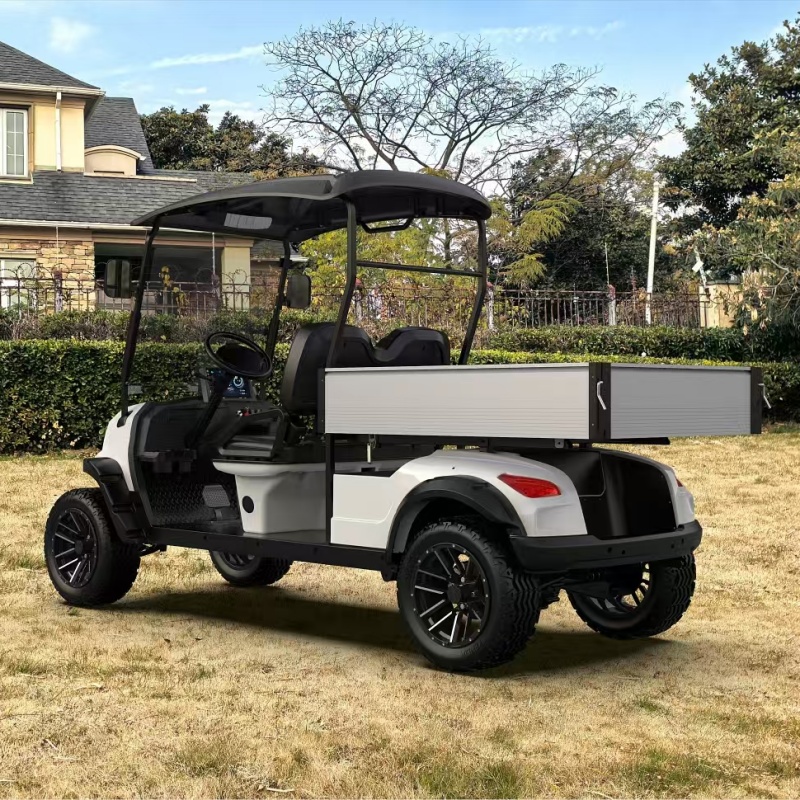

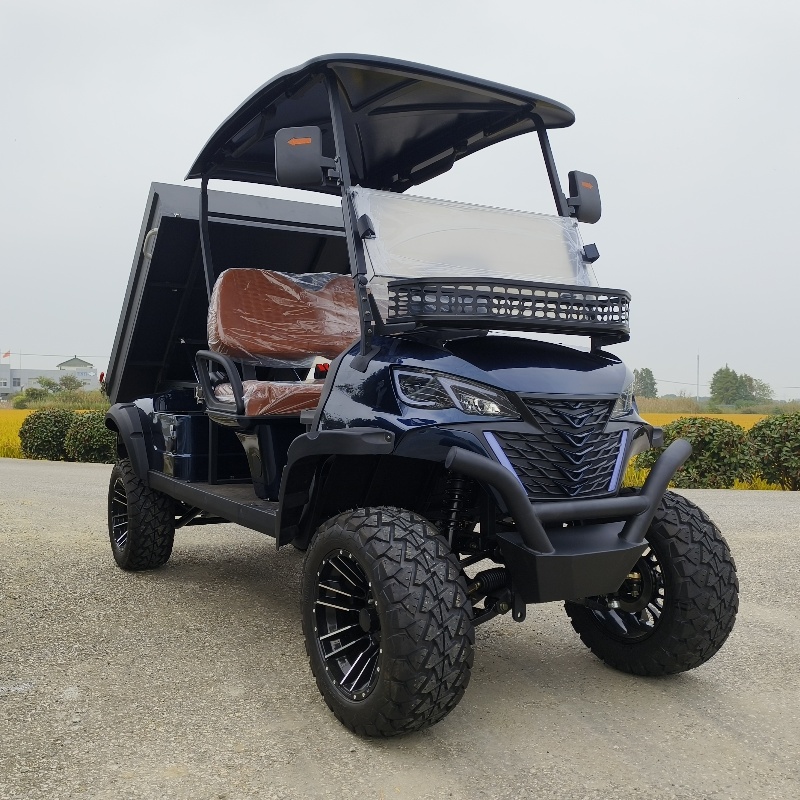

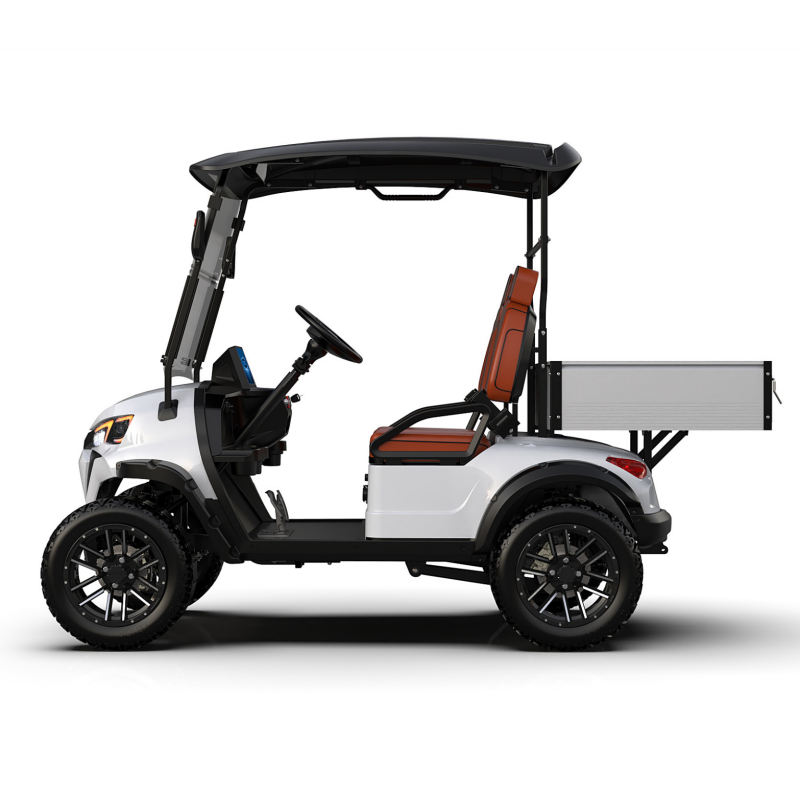

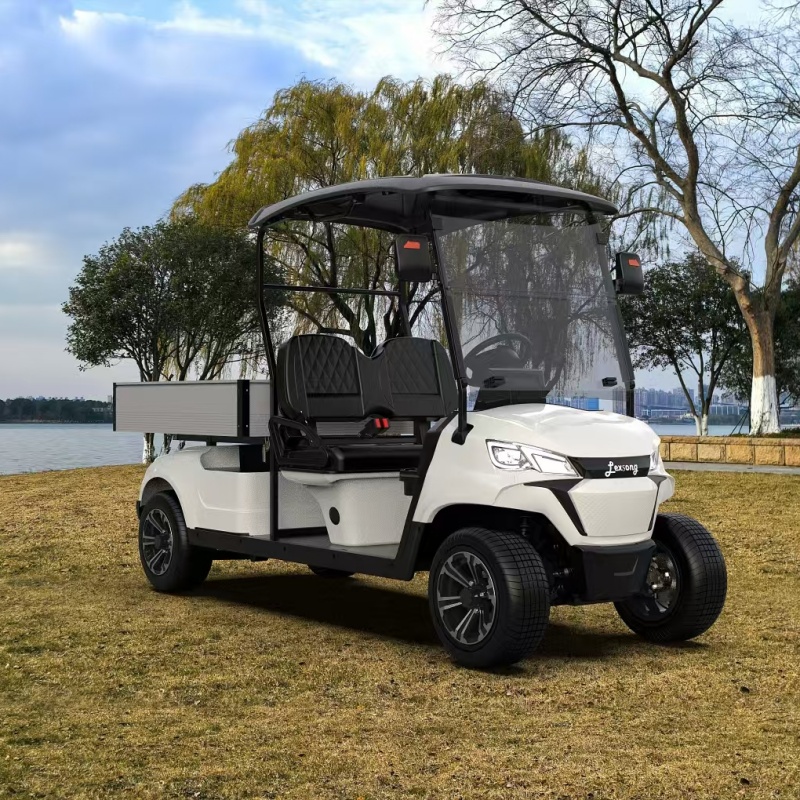

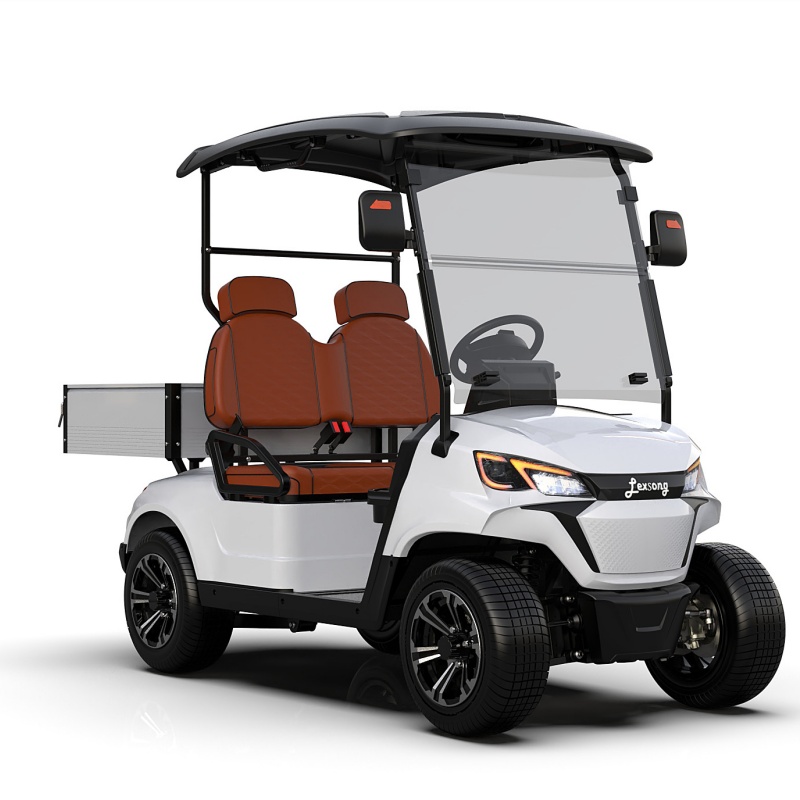

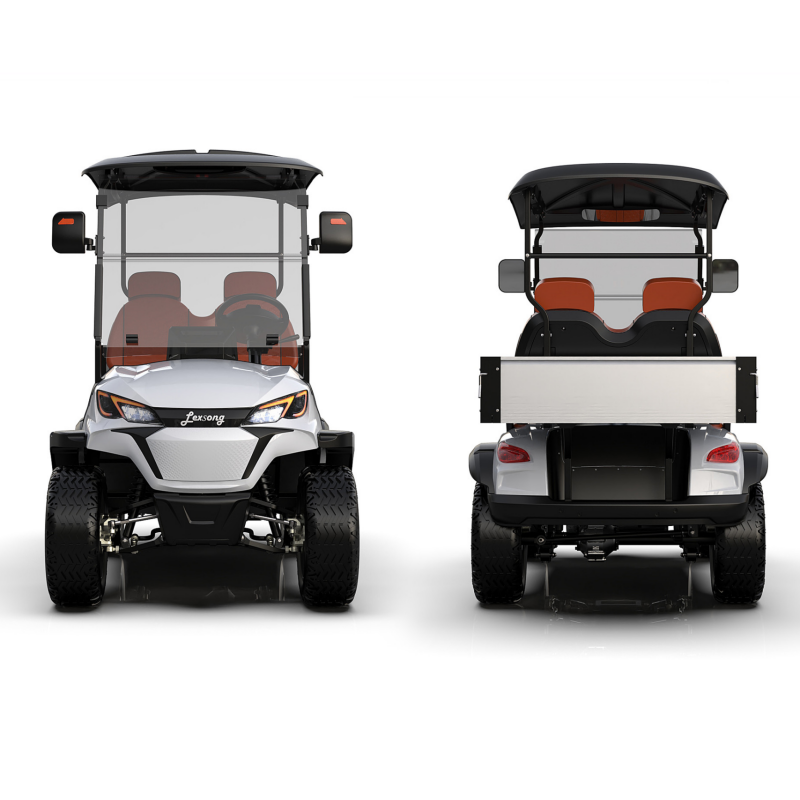

The LS2023KH is a highly versatile, 2-passenger utility buggy powered by a high-performance lithium battery and a durable AC motor. Designed for durability and quiet efficiency, it features a spacious rear cargo box tailored for various transporting tasks.
Its eco-friendly operation makes it perfectly suited for clean and quiet environments, providing seamless transport across diverse applications such as hotels, resorts, residential communities, airports, stations, theme parks, factories, gardens, and school campuses.
| SPECIFICATIONS OF LS2023KH UTILITY VEHICLE | |
|---|---|
| Key Components | |
| System | 72V / 5KW AC System |
| Battery | 72V 105AH Lithium Battery |
| Motor | 5KW AC Motor (7.5KW optional) |
| Controller | AC Controller |
| Performance | |
| Passenger Capacity | 2 Persons |
| Range (Loaded) | >110 km (Based on flat road at 20 km/h) |
| Max. Speed | 32 km/h (Adjustable) |
| Min. Turning Radius | 3.5 meters |
| Max. Climbing Ability (Loaded) | 25% |
| Braking Distance (at 20 km/h) | ≤ 4 meters |
| Max. Loading Weight | 320 kgs |
| Net Weight | 510 kgs |
| Dimensions | |
| Overall Dimensions | 2800 x 1340 x 1990 mm |
| Min. Ground Clearance | 150 mm |
| Wheelbase | 1680 mm |
| Front Wheel Tread | 850 mm |
| Rear Wheel Tread | 975 mm |
| Body & Frame | |
| Frame | Welded steel framework with galvanization and powder coating treatment |
| Body | PP plastic front and rear body panels |
| Roof | PP injection (Black) or vacuum plastic |
| Windshield | Organic glass hinged windshield |
| Floor | Galvanized steel plate with anti-slip rubber floor mat |
| Dashboard | Black plastic featuring 4 cup holders, 2 glove storage boxes, forward/reverse switch, battery capacity indicator, and ignition key |
| Electric & Steering Systems | |

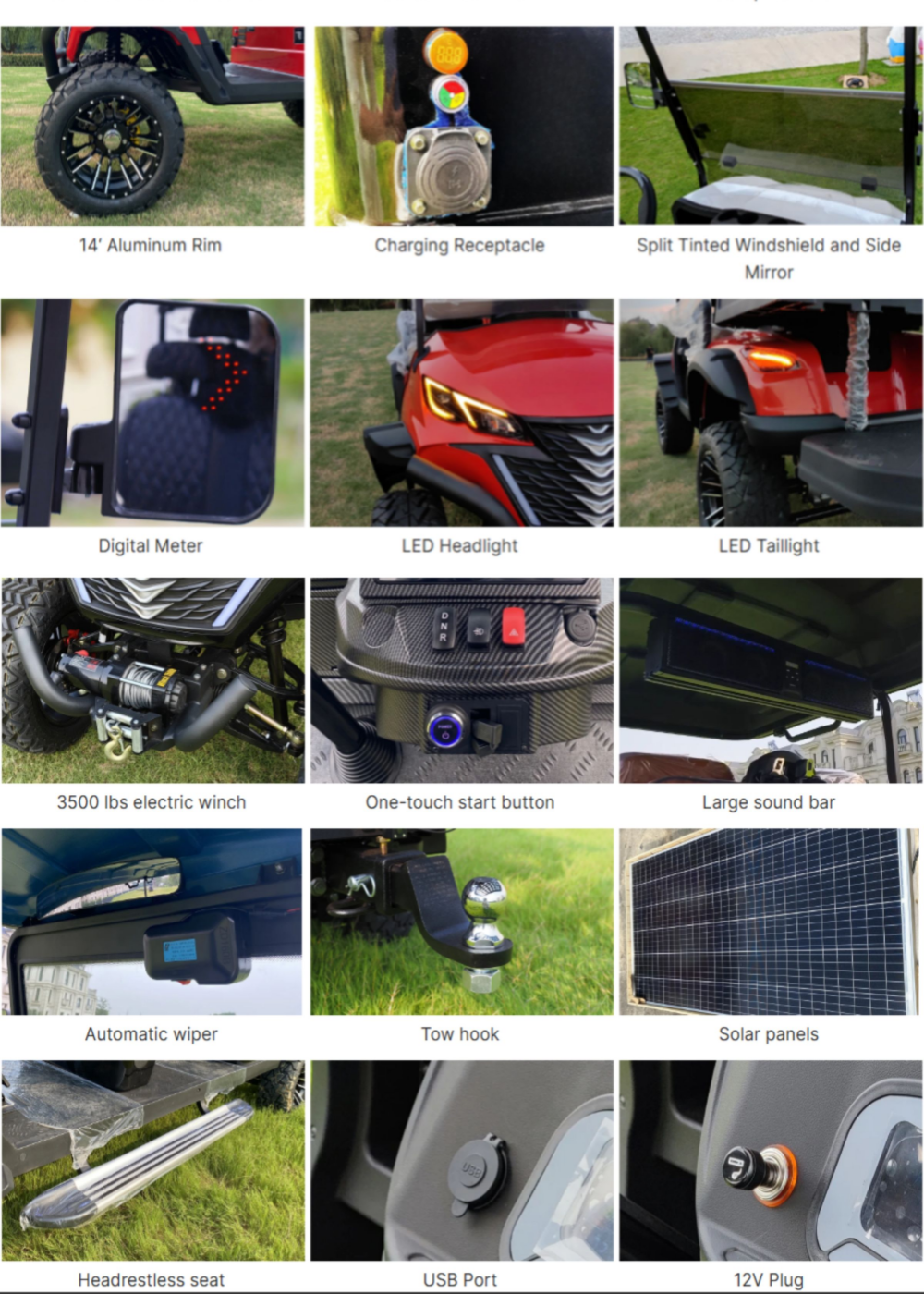

| Lighting & Horn | All LED configuration (2 headlights, 2 front turn signals, 2 combined taillights), 20A voltage reducer (72V to 12V), and electric horn |

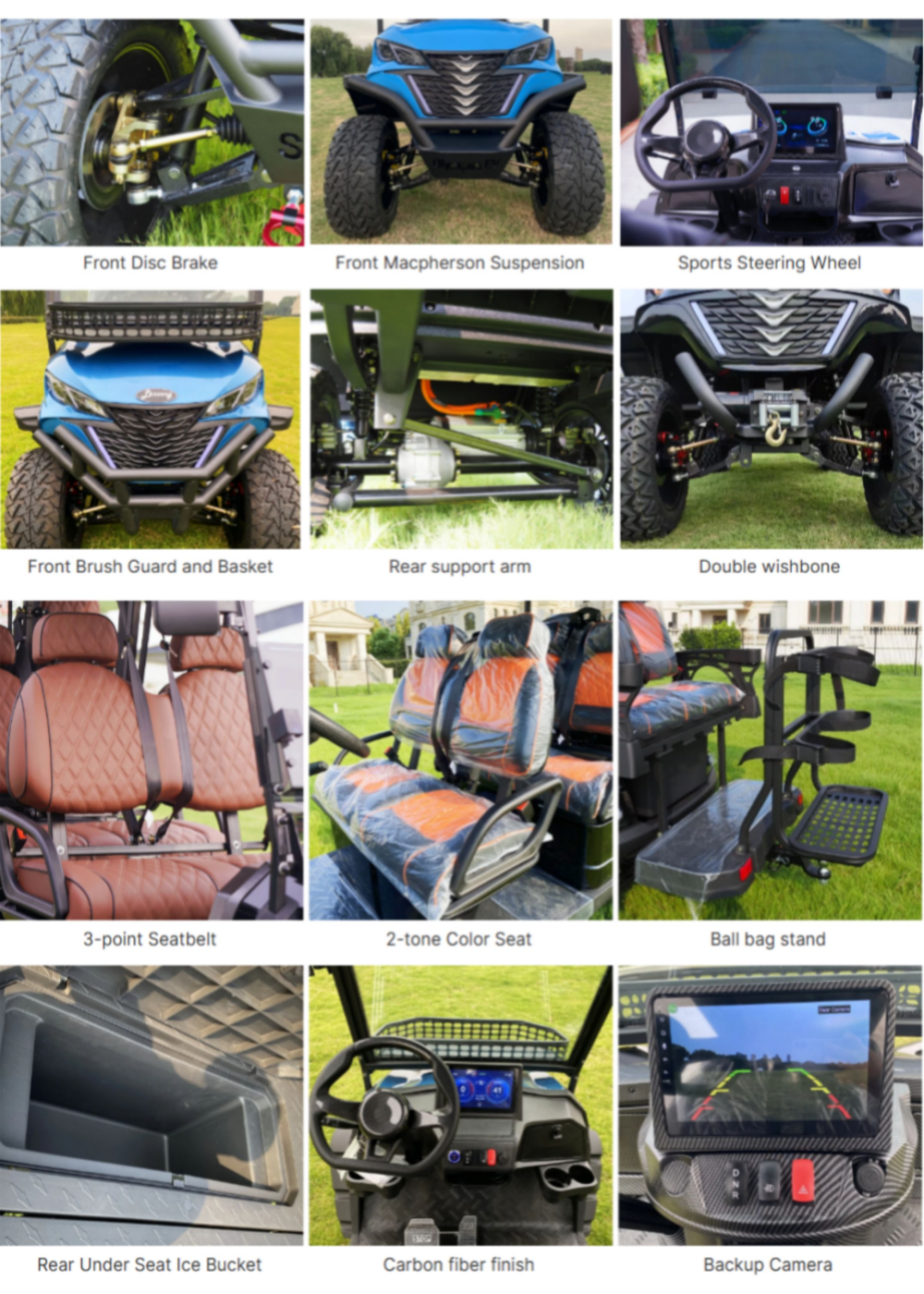

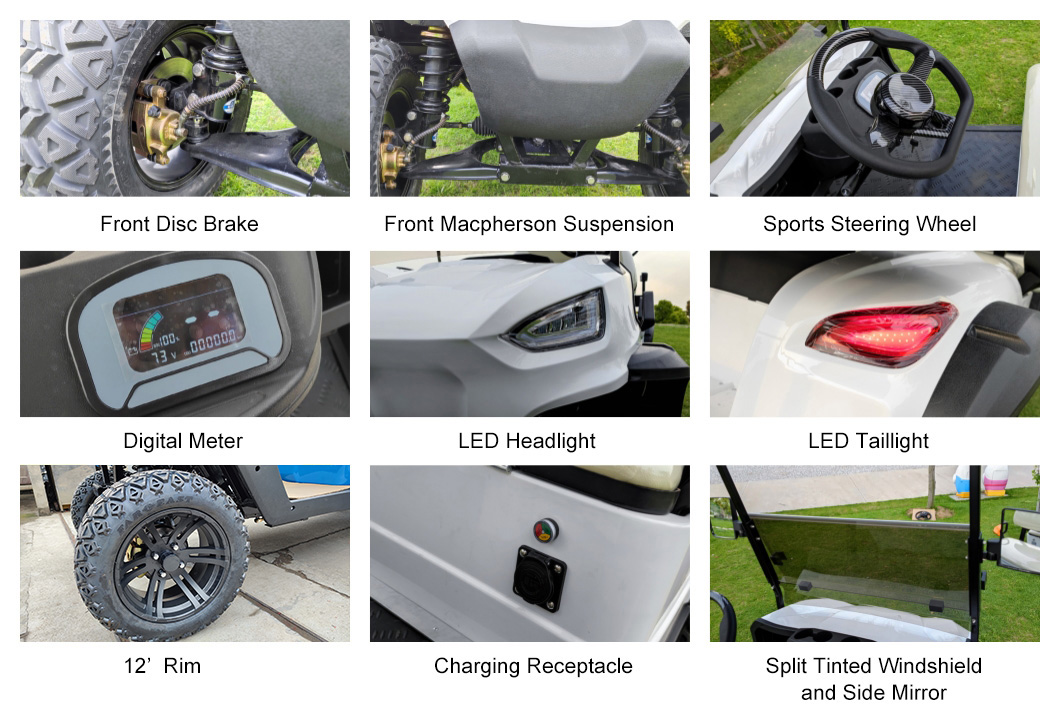

| Suspension System | Front MacPherson independent suspension, rear plate spring with vibration absorbers |
| Brakes | 4-wheel hydraulic brake (front disc, rear drum) plus a manual foot park brake |
| Wheel & Tyre | 12x7 aluminum wheels with 23" tyres (23*10.5-12) |

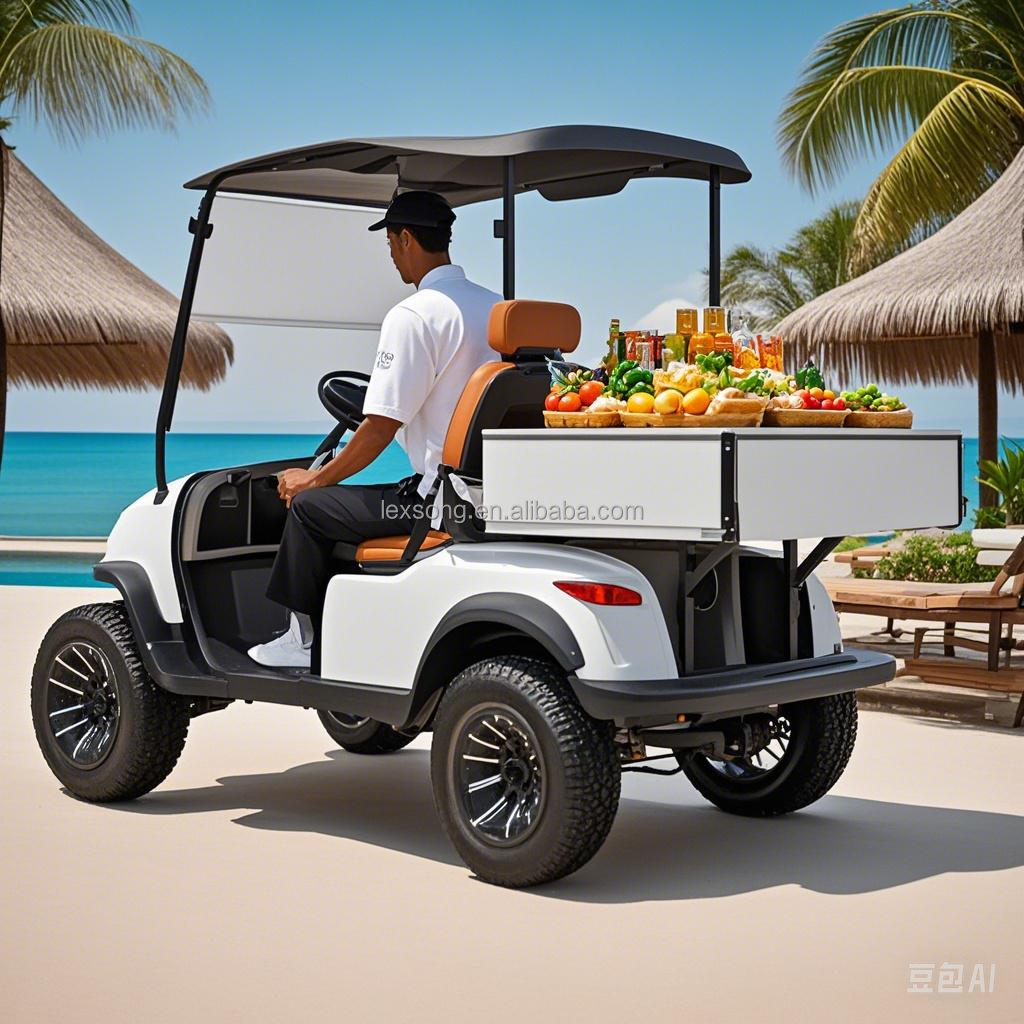

Designed with functionality in mind, these environment-friendly passenger electric utility vehicles and golf buggies are engineered for exceptional performance. Beyond golf courses, they are outstandingly reliable for short-distance transport across resorts, private villas, garden hotels, tourist attractions, and industrial sites.

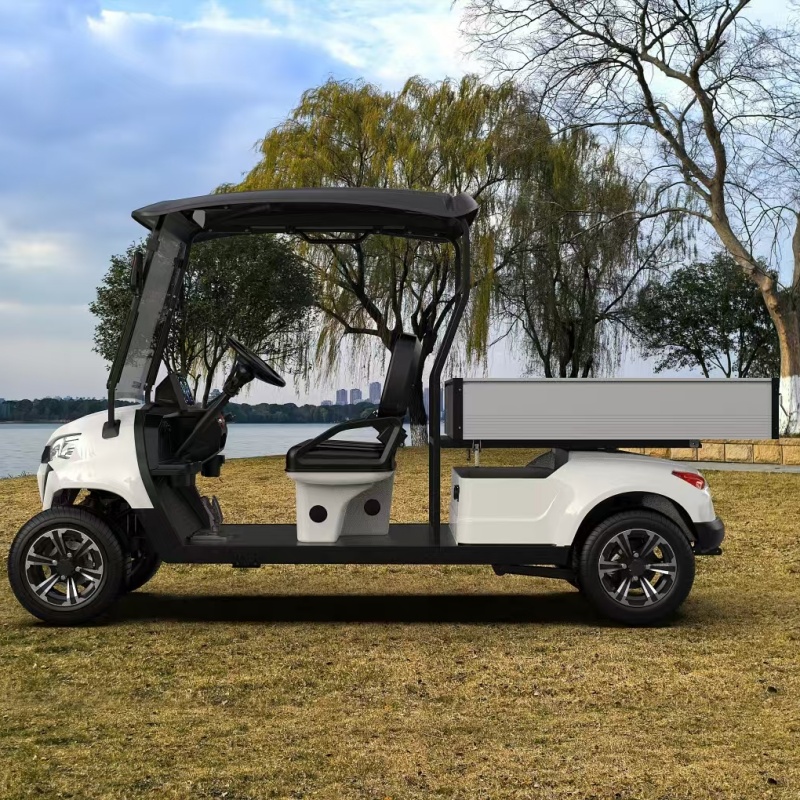

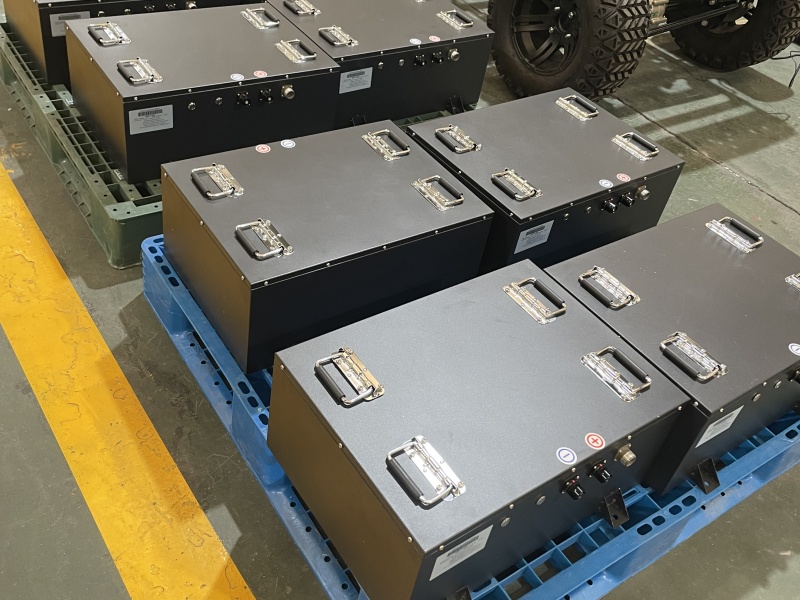

Equipped with premium lithium-ion battery packs featuring high-performance LG pouch cells. Operating on a 72V system with choices of 100Ah/125Ah capacity, it utilizes an intelligent BMS to manage and monitor individual cells.

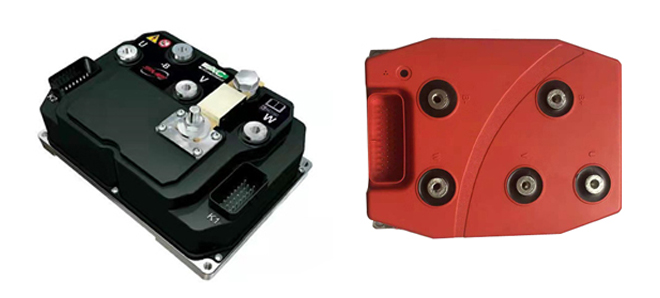

Features top-tier programmable Curtis controllers (72V 400A AC) or SME brand controllers (72V 450A AC). Includes dynamic regenerative braking and a built-in walk-away protection system for maximum safety.
Maintenance-free and incredibly robust, with power output choices of either 5KW or 7.5KW. Configured with the upgraded 7.5KW motor, the utility vehicle easily navigates climbing slopes up to 35% with full loads.

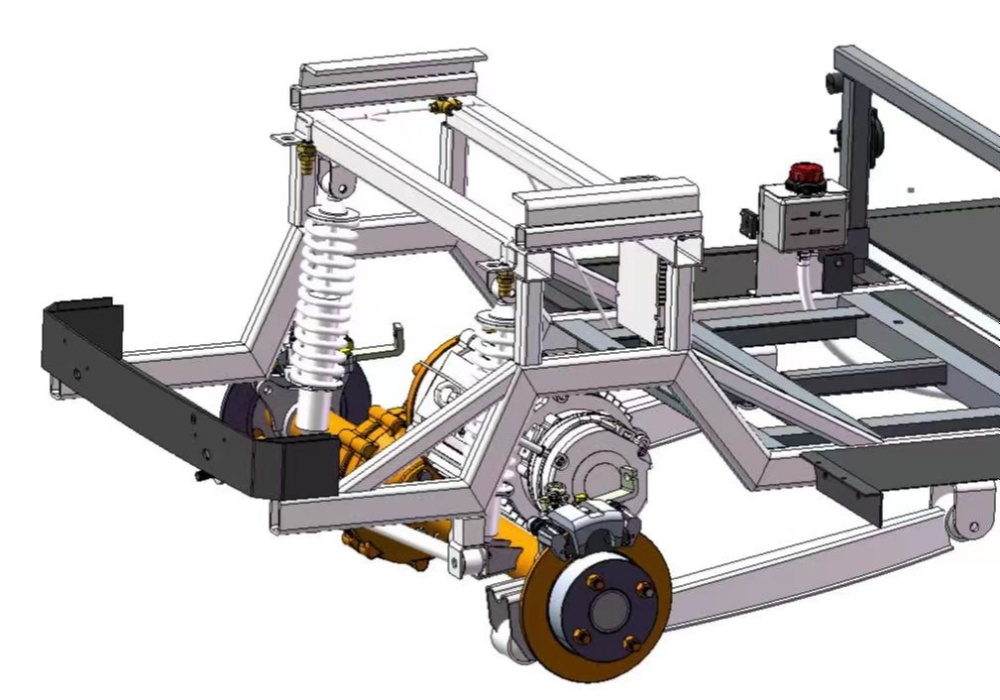

Features a high-spec rear suspension system coupled with an aluminum casing. Engineered to be completely silent, highly durable, and 100% leak-proof.

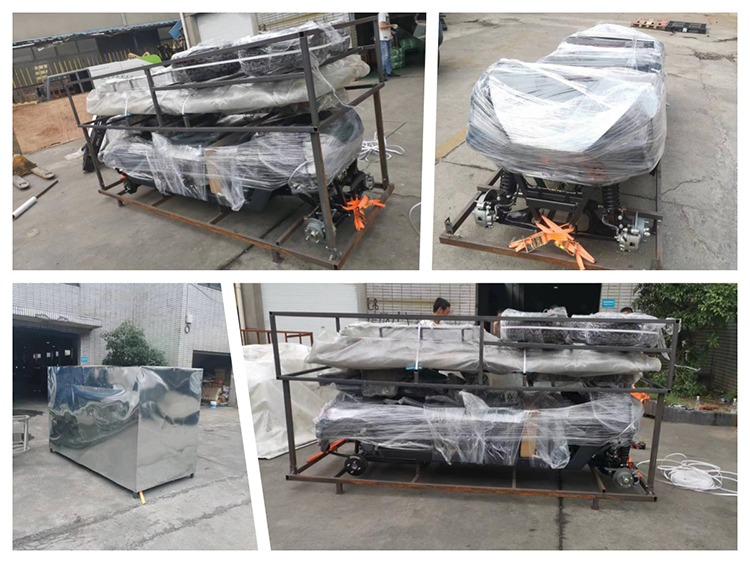

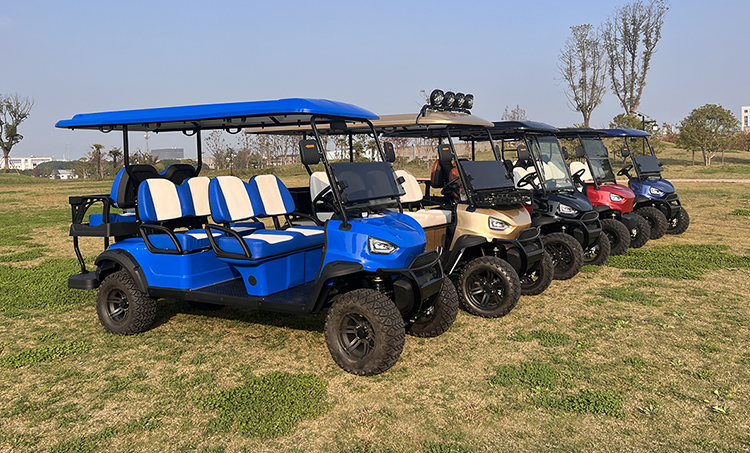

Vehicles are exported across more than 40 countries globally, boasting structured packing procedures that ensure transit safety while optimizing space and container volume.
| Container Loading Qty | Disassembled (With top basket, front basket & bumper) | Disassembled (Without top basket, front basket & bumper) |
|---|---|---|
| Qty/20' | 6 units | 6 units |
| Qty/40' | 12 units | 14 units |
| Qty/40'HQ | 18 units | 20 units |
We offer a 13-month comprehensive warranty on all electric vehicles starting from the date of shipment. Labor cost support for warranty-related issues is included.
18x7x360 Technical Support: Support is available 360 days a year, 7 days a week, 18 hours a day via phone or email.

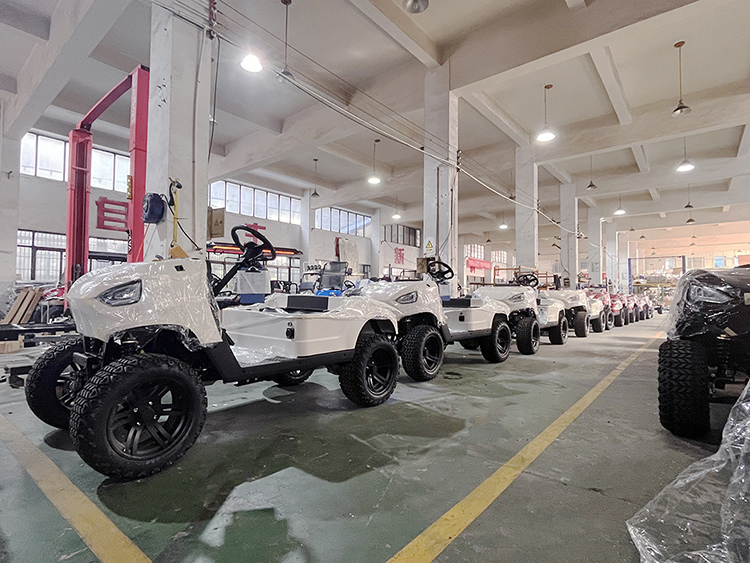

Spare parts supply is guaranteed during the lifetime of the vehicle models, and for at least 5 years if any specific model production ceases.
Flexible Payments: Tailored payment schedules are available to assist with business cash flow and logistical requirements.
