| Electrical System | |
|---|---|
| Controller | 48V |
| Battery | Lead-Acid & Lithium |
| Motor | 5KW(AC) Mahler motor |
| Charger | On board charger, 48V/25A |
| Body And Chassis Configuration | |
|---|---|
| Front Windshield | Injection Molding |
| Roof | Plastic suction art & injection molding |
| Seat | Formed anti-skid floor leather |
| Floor | Injection molding of PP for automobile |
| Body | Injection molding |
| Rearview Mirror | Manually adjustable, foldable rearview mirrors left and right |
| Lighting and Signals |
LED headlamp: (low beam, high beam, steering light, clearance lamps) LED tail lamp: (brake light, position light, steering light) snail horn, reversing buzzer |

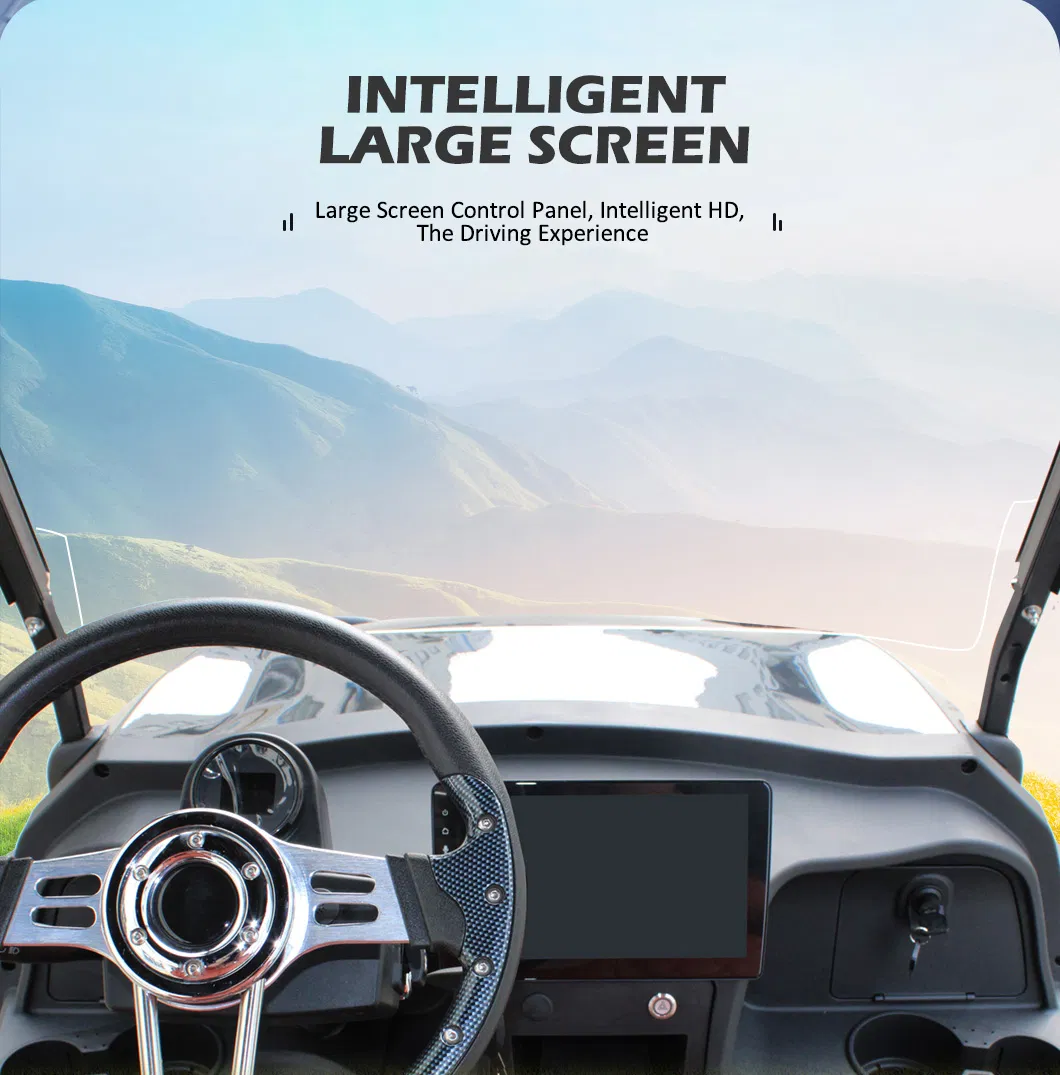

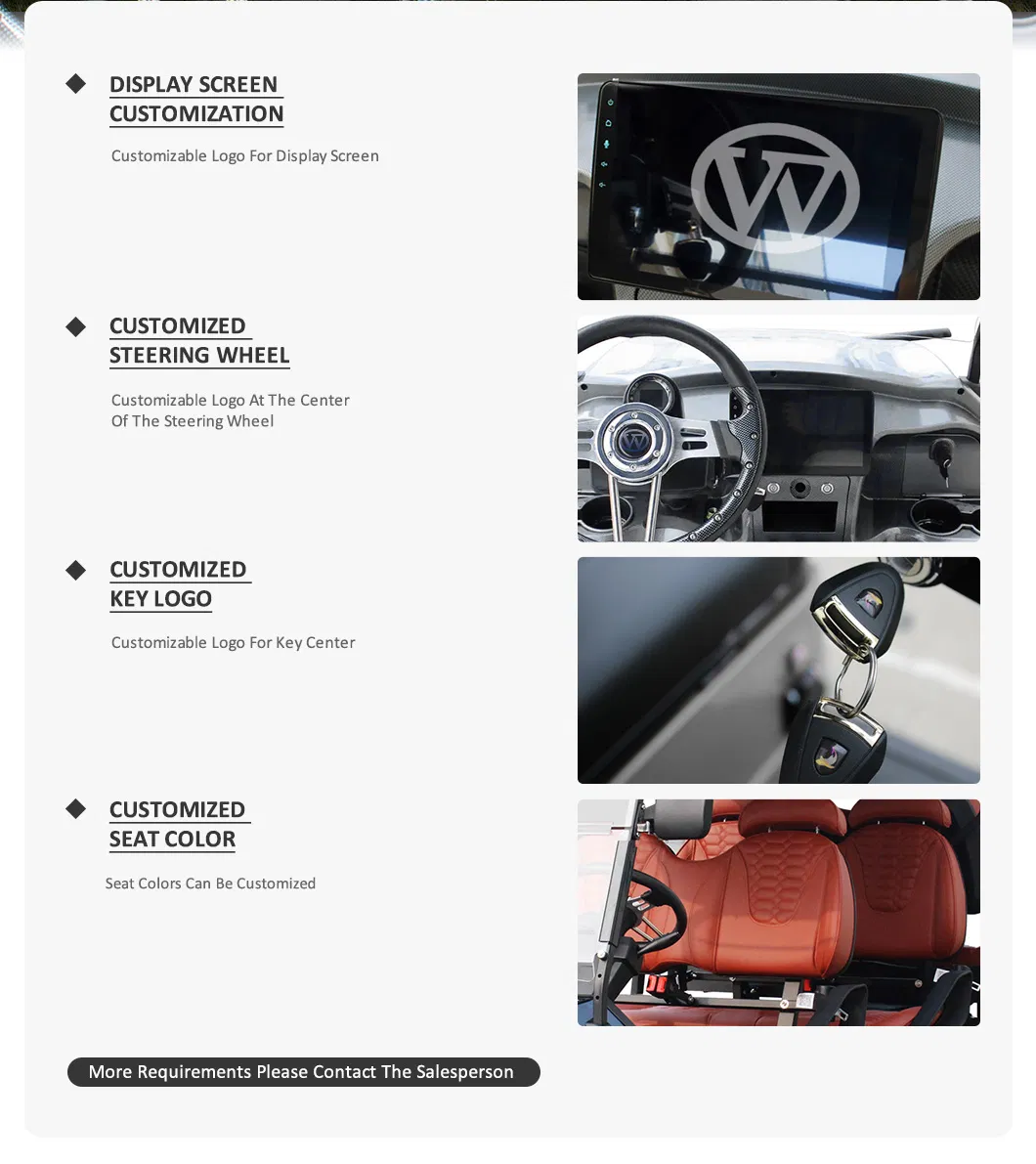

| Instrument Platform | Injection molding instrument, liquid crystal combination instrument, lock switch, single arm combination switch, gear switch, cup seat, 12V power supply |
| Direction System | Bidirectional rack and pinion steering system |
| Braking Systems | 4 wheel disc brake |
| Parking | Electromagnetic parking |

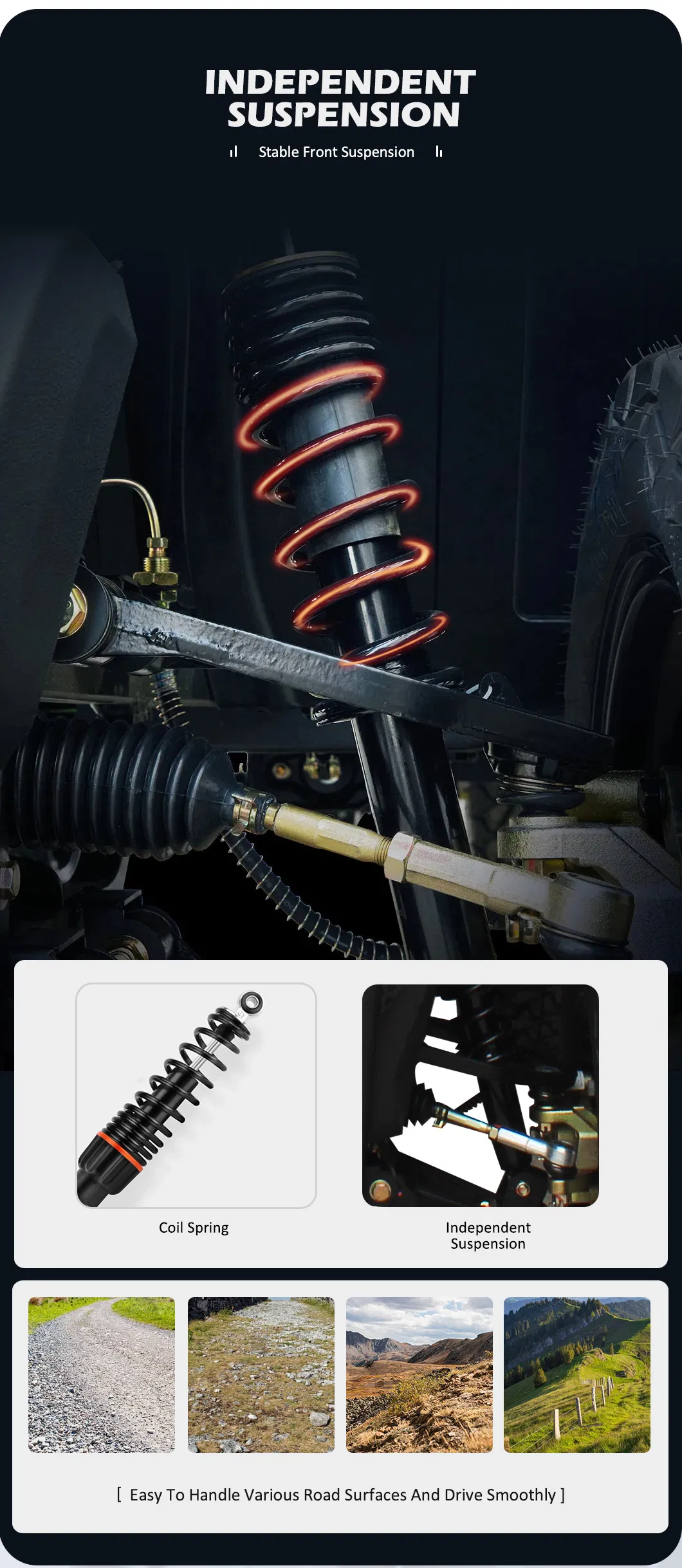

| Front Suspension System | Double-arm independent suspension |
| Rear Suspension System | Trailing arm |
| Tire Size | 12/14 inch |

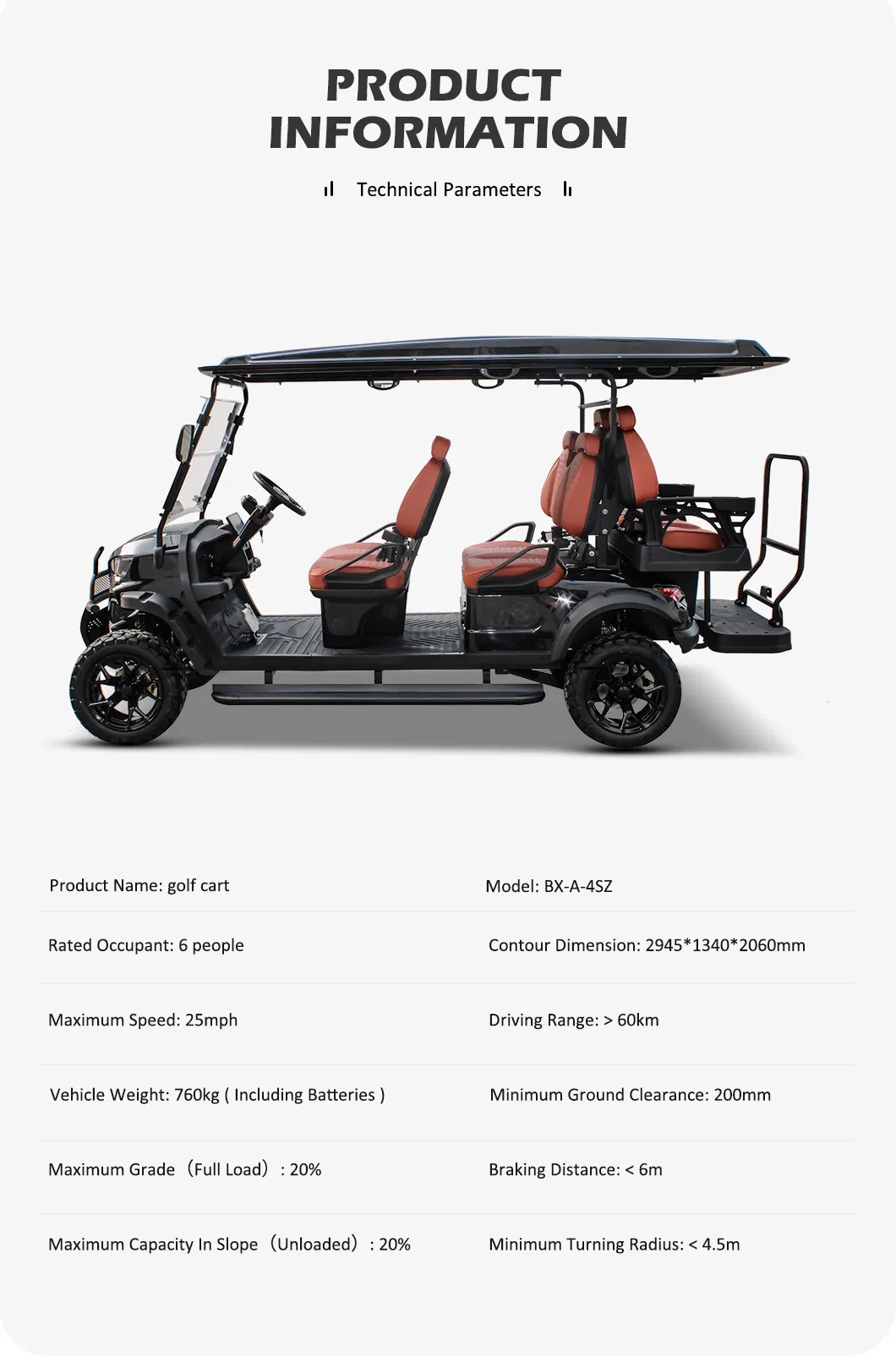

| Technical Parameter | |||
|---|---|---|---|
| Contour Dimension (mm) | 2945*1340*2060 | Vehicle Weight (kg) | 760 (including batteries) |
| Passenger Capacity | 6 | Maximum Capacity In Slope | 20% (unloaded) / 20% (full load) |
| Maximum Speed (mph) | 25 | Minimum Turning Radius (M) | <4.5 |
| Driving Range (km) | >60 | Minimum Ground Clearance (mm) | 200 |
| Braking Distance (M) | <6 | ||
